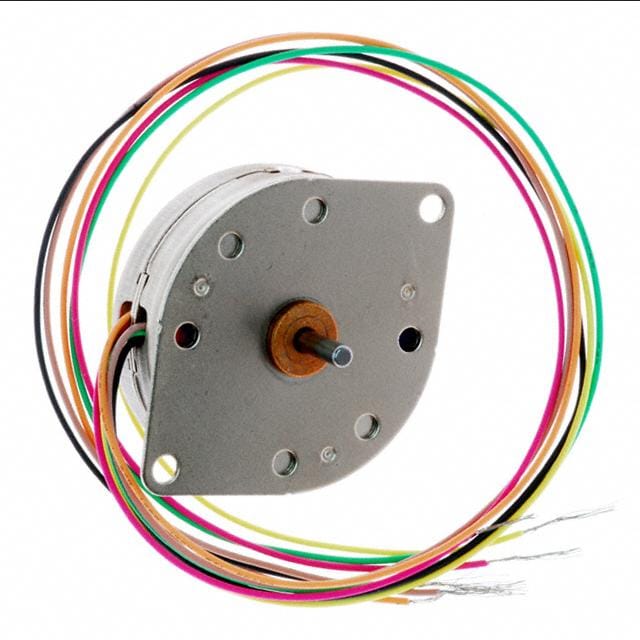

Portescap 403-1013-ND
Sku: TT-DKEY-403-1013-ND
₹4,125.6
Features
- Shipping in 10-12 Working Days
Description of product
STEPPER MOTOR PM UNIPOLAR 12V
Product Attributes:
| Series | 42M |
| Product Status | Active |
| Type | Permanent Magnet |
| Coil Type | Unipolar |
| Voltage - Rated | 12VDC |
| Steps per Revolution | 100.0 |
| Step Angle | 3.6° |
| Accuracy | ±11% |
| Torque - Holding (oz-in / mNm) | 6.4 / 45.2 |
| Size / Dimension | Round - 1.650" Dia (42.00mm) |
| Diameter - Shaft | 0.118" (3.00mm) |
| Length - Shaft and Bearing | 0.450" (11.43mm) |
| Mounting Hole Spacing | 1.950" (49.48mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 70°C |
| Coil Resistance | 75 Ohms |
| Features | Round Shaft |
| Current Rating (Amps) | 160 mA |
| NEMA Frame Size | - |
