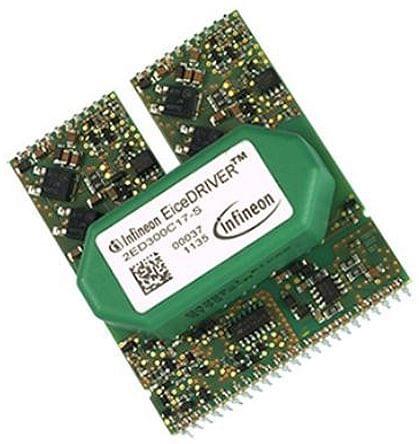

5d721ba0585650217c05f147 2ED300C17STROHSBPSA1 - Development Board, EiceDriver Safe IGBT Gate Driver, 2-Channel, Extended Temperature https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5d721ba0585650217c05f147/images/5d89e817f33d11163694bcc6/5d89e7f60757a56c11050190/5d89e7f60757a56c11050190.jpg

Description

Dual channel high voltage IGBT driver board Product Highlights

 Galvanically isolated dual channel IGBT driver

 Reinforced isolation according to EN 50178

 Integrated protection features

 5kV isolation test performed as 100% test

 High Electromagnetic Compatibility

Features

 Designed for Infineon IGBT modules up to 1700V

 High peak output current of 30A

 Integrated DC-DC SMPS

 Soft Shut Down in fault conditions

 Dynamic Over Current Detection

 IGBT desaturation monitoring

 Interlocking in half-bridge mode

 Open drain fault output

 Low impedance 15V inputs for high noise immunity

 ±15 V secondary drive voltage

 Short propagation delay time

 Optional sense function

 RoHS compliant

 UL94V-2 compliant materials

Typical Applications

 Renewable energies

 Drives and automation

 Transportation

 Power supplies

 Medical

 UPS systems

TT-ELK-2762286
in stockINR 16876.36
INFINEON
1 1
2ED300C17STROHSBPSA1 -  Development Board, EiceDriver Safe IGBT Gate Driver, 2-Channel, Extended Temperature

2ED300C17STROHSBPSA1 - Development Board, EiceDriver Safe IGBT Gate Driver, 2-Channel, Extended Temperature

Sku: TT-ELK-2762286
₹16,876.36


Sold By: tenettech
Features
  • Shipping in 10-12 Working days
  • http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5d721ba0585650217c05f147/images/5d721ba0585650217c05f148/5d721b22585650217c05e17a/5d721b22585650217c05e17a.jpg

Description of product

Description

Dual channel high voltage IGBT driver board Product Highlights

 Galvanically isolated dual channel IGBT driver

 Reinforced isolation according to EN 50178

 Integrated protection features

 5kV isolation test performed as 100% test

 High Electromagnetic Compatibility

Features

 Designed for Infineon IGBT modules up to 1700V

 High peak output current of 30A

 Integrated DC-DC SMPS

 Soft Shut Down in fault conditions

 Dynamic Over Current Detection

 IGBT desaturation monitoring

 Interlocking in half-bridge mode

 Open drain fault output

 Low impedance 15V inputs for high noise immunity

 ±15 V secondary drive voltage

 Short propagation delay time

 Optional sense function

 RoHS compliant

 UL94V-2 compliant materials

Typical Applications

 Renewable energies

 Drives and automation

 Transportation

 Power supplies

 Medical

 UPS systems
