5b1f5fca73ad642b29ea8ee4 CP2102 USB UART Board (micro) https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b1f5fca73ad642b29ea8ee4/images/5e2c13eb3ce8c45b30e9e4e3/5e2c13e73ce8c45b30e9e40c/5e2c13e73ce8c45b30e9e40c.jpg

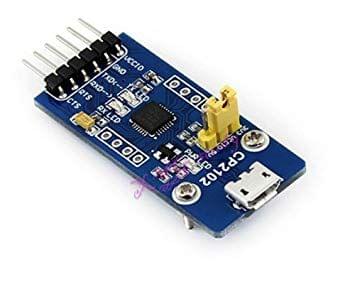

DescriptionCP2102 USB to UART Module, USB micro connectorOverviewThe CP2102 USB UART Board (micro) is an accessory board that features the single-chip USB to UART bridge CP2102 onboard.CP2102 features

    • Single-Chip USB to UART Data Transfer
    • No external resistors required, no external crystal required
    • On-chip power-on reset circuit and voltage regulator
    • Integrated 1024-Byte EEPROM
    • USB Function Controller
    • USB Specification 2.0 compliant; full-speed (12 Mbps)
    • USB suspend states supported via SUSPEND pins
    • UART
    • All handshaking and modem interface signals
    • Data formats supported:
    • Data bits: 5, 6, 7, and 8
    • Stop bits: 1, 1.5, and 2
    • Parity: odd, even, no parity
    • Baud rates: 300 bps to 1 Mbits
    • 576 Byte receive buffer; 640 byte transmit buffer
    • Hardware or X-On/X-Off
    • handshaking supported
    • Event character supportVirtual COM Port Device Drivers
    • Windows 8/7/Vista/Server 2003/XP/2000
    • MAC OS-X/OS-9
    • Linux 2.40 or higher
    • USBXpress Direct Driver Support
    • Windows 7/Vista/Server 2003/XP/2000
    • Windows CE
    • Temperature Range
    • –40 to +85 °C

Features

  • Supports Mac, Linux, Android, WinCE, Windows 7/8/8.1/...
  • Voltage output support: 5V or 3.3V
  • Integrated USB protection device: SP0503
  • 3 LEDs: TXD LED, RXD LED, POWER LED
  • Pins accessible on pinheaders: TXD, RXD, RTS, CTS
  • Other pins are accessible on drilled holes, easily connected to user application system (separate pinheaders are provided)

How to UseIn the case of working with a MCU:VCCIO: 3.3V or 5V output (the module is powered from USB, onboard jumper should be shorted to 3.3V or 5V)GND: connects to GNDTXD: connects to MCU.RX (signal direction: MCU.RX << CP2102 << PC.TX)RXD: connects to MCU.TX (signal direction: MCU.TX >> CP2102 >> PC.RX)RTS: connects to MCU.CTS (signal direction: MCU.CTS << CP2102 << PC.RTS)CTS: connects to MCU.RTS (signal direction: MCU.RTS >> CP2102 >> PC.CTS)Note: VCP examples and USBXpress driver program library are provided.Dimension

TT-WS-11325
in stock INR 634.84
WAVESHARE
1 1

CP2102 USB UART Board (micro)

Sku: TT-WS-11325
₹634.84


Sold By: tenettech
Features
  • Shipping in 10-12 Working days
  • PRE ORDER
